ISUZU 5T Wrecker Truck (6.6m Euro VI)
The ISUZU 5T Wrecker Truck (6.6m Euro VI) is a light-duty recovery vehicle built on a reliable ISUZU chassis, powered by a Euro VI diesel engine producing 190 hp. It features a 5-ton flatbed and is specifically designed for passenger vehicle road rescue, making it ideal for urban towing, roadside assistance, and vehicle recovery operations.
The truck is equipped with a 4-ton rear support arm lifting capacity, a 5-ton hydraulic winch with 25-meter steel wire rope, and a 6600 × 2450 mm flatbed. It also includes air conditioning, directional assistance, oil brake, and warning lights for safe and visible operation on public roads. Its 4×2 drive and 6-speed manual gearbox ensure reliable performance in daily rescue tasks.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Vehicle Model | SA5120TQZQ6 |
| Overall Dimensions | 8490 × 2500 × 2450 mm |
| GVW | 12000 kg (approximate) |
| Curb Weight | 6800 kg (approximate) |
| Rated Load | 5000 kg (approximate) |
| Front / Rear Hanging | 1110 / 2905 mm |
| Approach / Departure Angle | 17° / 15° |
| Leaf Spring | 8/10+6 pcs |
| Drive Wheel | 4 × 2 |
| Chassis Model | QL1110ANMAY |
| Manufacturer | Qingling (ISUZU) Motors Co., Ltd. |
| Wheel Base | 4475 mm |
| Tire Specification | 8.25R20 inch |
| No. of Tires | 6 + 1 spare |
| Engine | |
| Engine Type | 4HK1-TCG61 (Euro VI) |
| Manufacturer | ISUZU (China) Engine Co., Ltd. |
| Engine Horsepower | 190 hp |
| Displacement | 5193 ml |
| Emission Standard | Euro VI |
| Gearbox | |
| No. of Gears | Manual 6-speed with overdrive |
| Cab | |
| Passengers | 3 |
| Steering Wheel | LHD |
| Row | Single row |
| Other | Air conditioning, directional assistance, oil brake, warning lights |
| Special Function | |
| Application | Suitable for passenger vehicle road rescue |
| Flat-bed Size (L×W) | 6600 × 2450 mm |
| Flat-bed Capacity | 5 T |
| Rear Support Arm Lifting Weight | 4 T |
| Hydraulic Winch | 5 T |
| Hydraulic Winch Steel Wire Rope | 25 m |

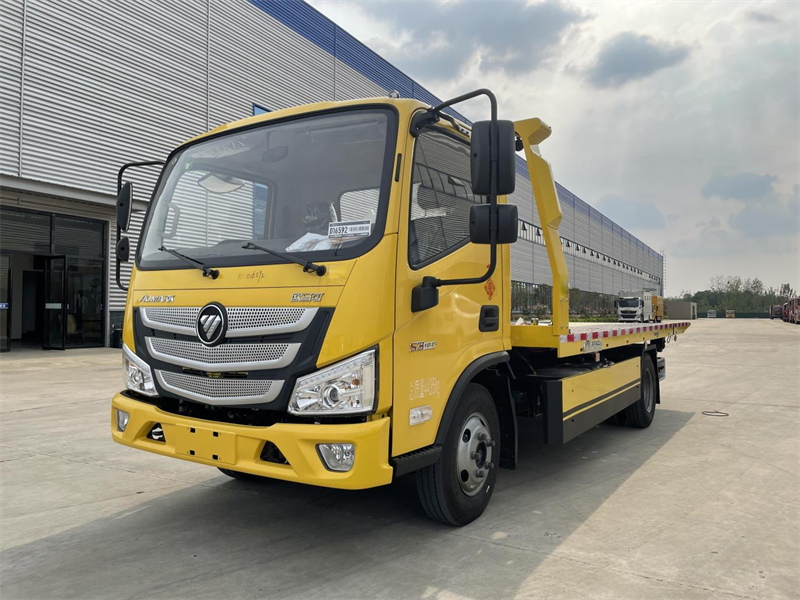

FOTON Wrecker Truck (6T)
The FOTON Wrecker Truck (6T) is a light-duty recovery vehicle built on a reliable Foton chassis, powered by a Euro VI diesel engine producing 160 hp. It features a 6-ton flatbed and is specifically designed for passenger vehicle road rescue, making it ideal for urban towing, roadside assistance, and vehicle recovery operations.
The truck is equipped with a 4-ton rear support arm lifting capacity, a 6-ton hydraulic winch with 25-meter steel wire rope, and a 6200 × 2450 mm flatbed. It also includes warning lights and loudspeakers for safe and visible operation on public roads. Its 4×2 drive and 8-speed manual gearbox ensure reliable performance in daily rescue tasks.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Vehicle Model | SA5090TQZ6 |
| Overall Dimensions | 6200 × 2500 × 2450 mm |
| GVW | 9000 kg (approximate) |
| Curb Weight | 2800 kg (approximate) |
| Rated Load | 6000 kg (approximate) |
| Front / Rear Hanging | 1110 / 1285 mm |
| Approach / Departure Angle | 16° / 13° |
| Leaf Spring | 3/5+2 pcs |
| Drive Wheel | 4 × 2 |
| Chassis Model | BJ1048V9JD6-F3 |
| Manufacturer | Beiqi Foton Motor Co., Ltd. |
| Wheel Base | 3600 mm |
| Tire Specification | 7.00R16 inch |
| No. of Tires | 6 + 1 spare |
| Engine | |
| Engine Type | F2.5NS6B160 (Euro VI) |
| Manufacturer | Beijing Foton Cummins Engine Co., Ltd. |
| Engine Horsepower | 160 hp |
| Displacement | 2498 ml |
| Emission Standard | Euro VI |
| Gearbox | |
| No. of Gears | Manual 8-speed with overdrive |
| Cab | |
| Passengers | 3 |
| Steering Wheel | LHD |
| Row | One and a half rows |
| Other | Air conditioning, directional assistance, oil brake, warning lights |
| Special Function | |
| Application | Suitable for passenger vehicle road rescue |
| Flat-bed Size (L×W) | 6200 × 2450 mm |
| Flat-bed Capacity | 6 T |
| Rear Support Arm Lifting Weight | 4 T |
| Hydraulic Winch | 6 T |
| Hydraulic Winch Steel Wire Rope | 25 m |
| Warning System | Warning lights and loudspeakers |

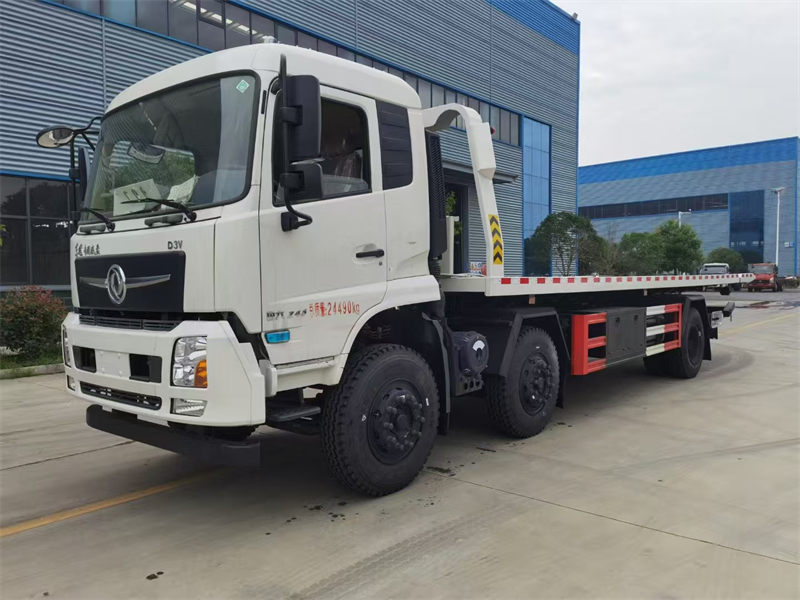

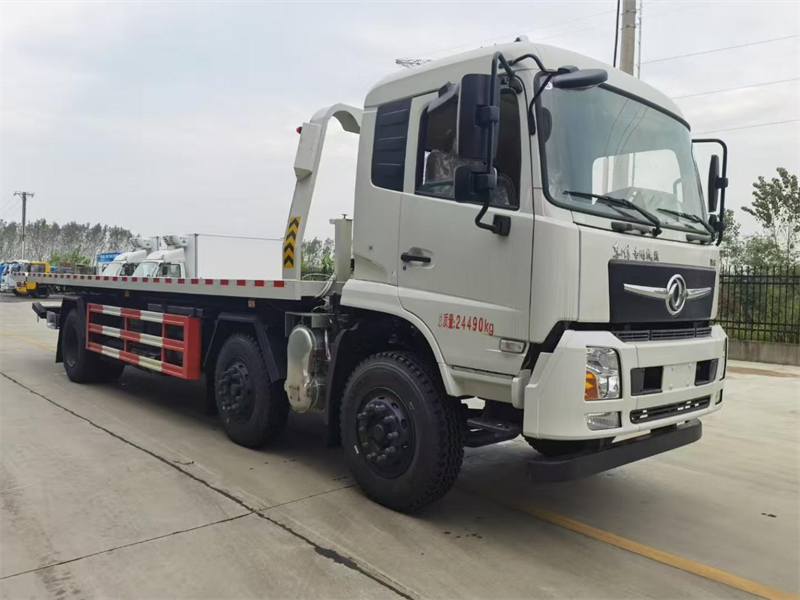

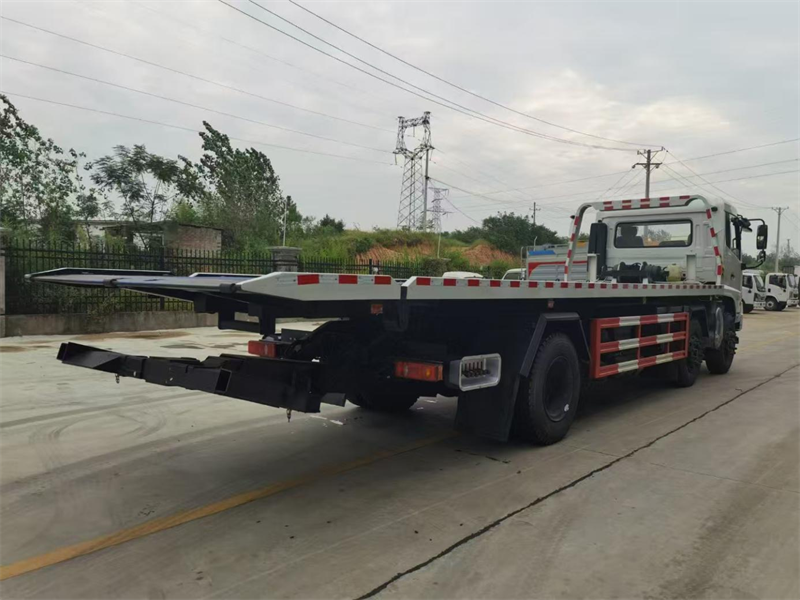

Dongfeng 15T Wrecker Truck (10M)

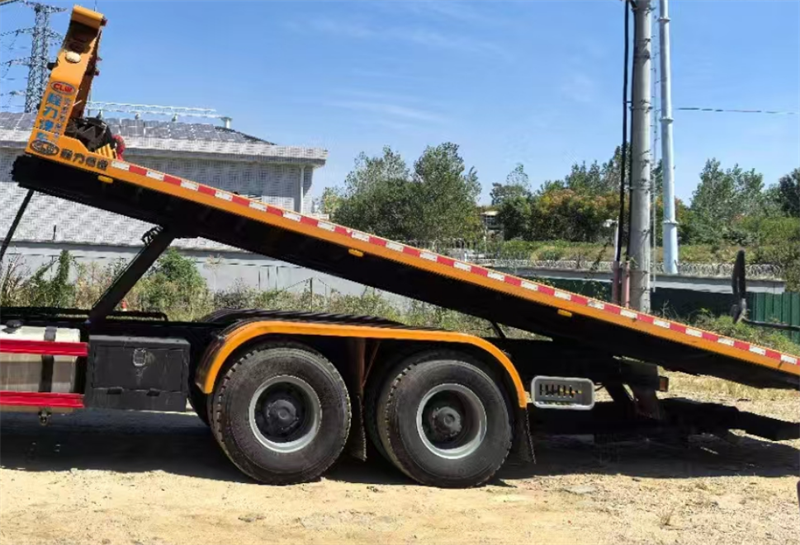

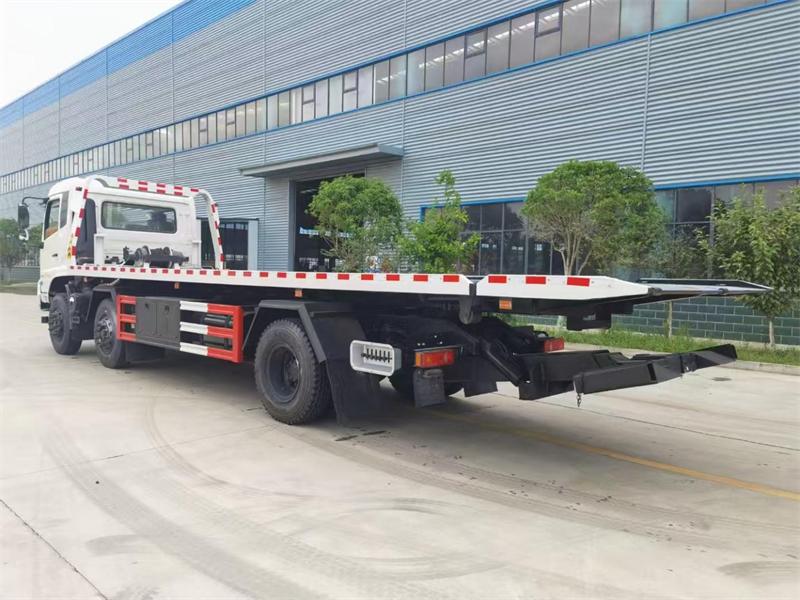

The Dongfeng 15T Wrecker Truck (10M) is a heavy-duty recovery vehicle built on a reliable Dongfeng chassis, powered by a Euro V diesel engine producing 270 hp. It features a 10-meter flatbed, a 15-ton upper load capacity, and a 12-ton winch with 25-meter steel wire rope, making it ideal for towing and recovering trucks, buses, and heavy equipment.
The truck is equipped with dual-side linkage operation and a rear support arm capable of towing 12 tons. Standard accessories include patterned and pressed plates, imported valves, a set of auxiliary carts, yellow electronic alarm lights, four bundlers, one pair of rotating cylinders, and one pair of L-shaped holding tires. Its 6×4 drive and 9-speed manual gearbox deliver stable performance in demanding recovery operations.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Overall Dimensions | 10920 × 2550 × 2960 mm |
| Rated Load | 12600 kg (approximate) |
| Max Load | 15000 kg (approximate) |
| Axle Load | 7000 / 10000 kg |
| Front / Rear Hanging | 1400 / 3250 mm |
| Approach / Departure Angle | 23° / 9° |
| Leaf Spring | 9/10 pcs |
| Drive Wheel | 6 × 4 |
| Chassis Model | DFL1250A13 |
| Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. |
| Wheel Base | 5700 + 1350 mm |
| Tire Specification | 11.00R20 inch |
| No. of Tires | 10 + 1 spare |
| Engine | |
| Engine Type | ISD270 50 (Euro V) |
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Horsepower | 270 hp |
| Displacement | 6700 ml |
| Emission Standard | Euro V |
| Gearbox | |
| No. of Gears | Manual 9-speed with overdrive |
| Cab | |
| Passengers | 2 |
| Steering Wheel | LHD |
| Row | One and a half rows |
| Equipment | |
| Plate Size | 10000 × 2500 mm |
| Upper Load | 15 tons |
| Winch | 12 tons, 25-meter steel wire rope |
| Operation | Dual side linkage operation |
| Rear Support Arm | Towing 12 tons |
| Standard Configurations | Optional patterned and pressed plates, imported valve, a set of auxiliary carts, yellow electronic alarm lights, four bundlers, one pair of rotating cylinders, one pair of L-shaped holding tires |

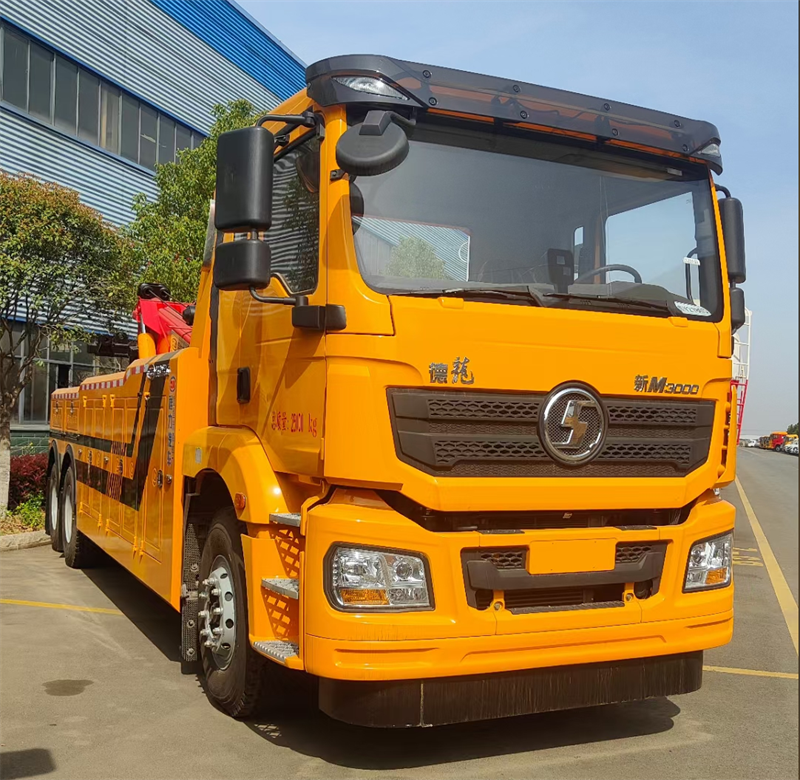

SHACMAN 20T Trailer Type Wrecker Truck
The SHACMAN 20T Trailer Type Wrecker Truck is a heavy-duty recovery vehicle built on a reliable SHACMAN chassis, powered by a Euro V diesel engine producing 325 hp. It features a 20-ton upper installation with a rear arm lifting capacity of 20 tons and rear arm traction of 45 tons, making it ideal for heavy commercial vehicle recovery, highway rescue, and large equipment towing.
The truck is equipped with a combined type upper installation, imported valve, two-section hexagonal crane arm, three-section support arm, and a split type carriage. It includes two 10-ton hydraulic winches with 45-meter steel wire rope (18 mm diameter), double-sided linkage operation, four sets of steel forks, towing fork sleeve, steel plate lifting ear towing fork, tire holding device, engineering warning lights, auxiliary lights, auxiliary air duct assembly, and two binding chains.
2. Technical Parameters
| Parameter | Value |
|---|---|
| Whole Vehicle | |
| Vehicle Model | SA5322TQZS5 |
| Overall Dimensions | 9730 × 2550 × 3250 mm |
| Curb Weight | 21270 kg (approximate) |
| Rear Arm Lifting Weight | 20000 kg (approximate) |
| Rear Arm Traction Weight | 45000 kg (approximate) |
| Front / Rear Hanging | 1525 / 2000 mm |
| Approach / Departure Angle | 16° / 11° |
| Leaf Spring | 10/12 pcs |
| Drive Wheel | 6 × 4 |
| Chassis Model | SX5258ZYSMIR |
| Manufacturer | Shaanxi Automobile Group Co., Ltd. |
| Wheel Base | 4375 + 1400 mm |
| Tire Specification | 12R22.5 inch |
| No. of Tires | 10 + 1 spare |
| Engine | |
| Engine Type | ISL 325 50 (Euro V) |
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Horsepower | 325 hp |
| Displacement | 8880 ml |
| Emission Standard | Euro V |
| Gearbox | |
| No. of Gears | Manual 10-speed with overdrive |
| Cab | |
| Passengers | 2 |
| Steering Wheel | LHD |
| Row | Single row and a sleeper |
| Other | Air conditioning, directional assistance, oil brake, warning lights |
| Special Function | |
| Upper Installation | 20 T upper installation, combined type upper installation, imported valve |
| Crane Arm | Two-section hexagonal crane arm, three-section support arm |
| Carriage | Split type carriage, double-sided linkage operation device |
| Hydraulic Winch | Two 10-ton hydraulic winches, 45-meter steel wire rope, diameter 18 mm |
| Accessories | Four sets of steel forks, one set of towing fork sleeve, one set of steel plate lifting ear towing fork, one set of tire holding device |
| Lighting & Air | A long row of engineering warning lights, one set of auxiliary lights, one set of auxiliary air duct assembly |
| Binding Chains | Two binding chains |
